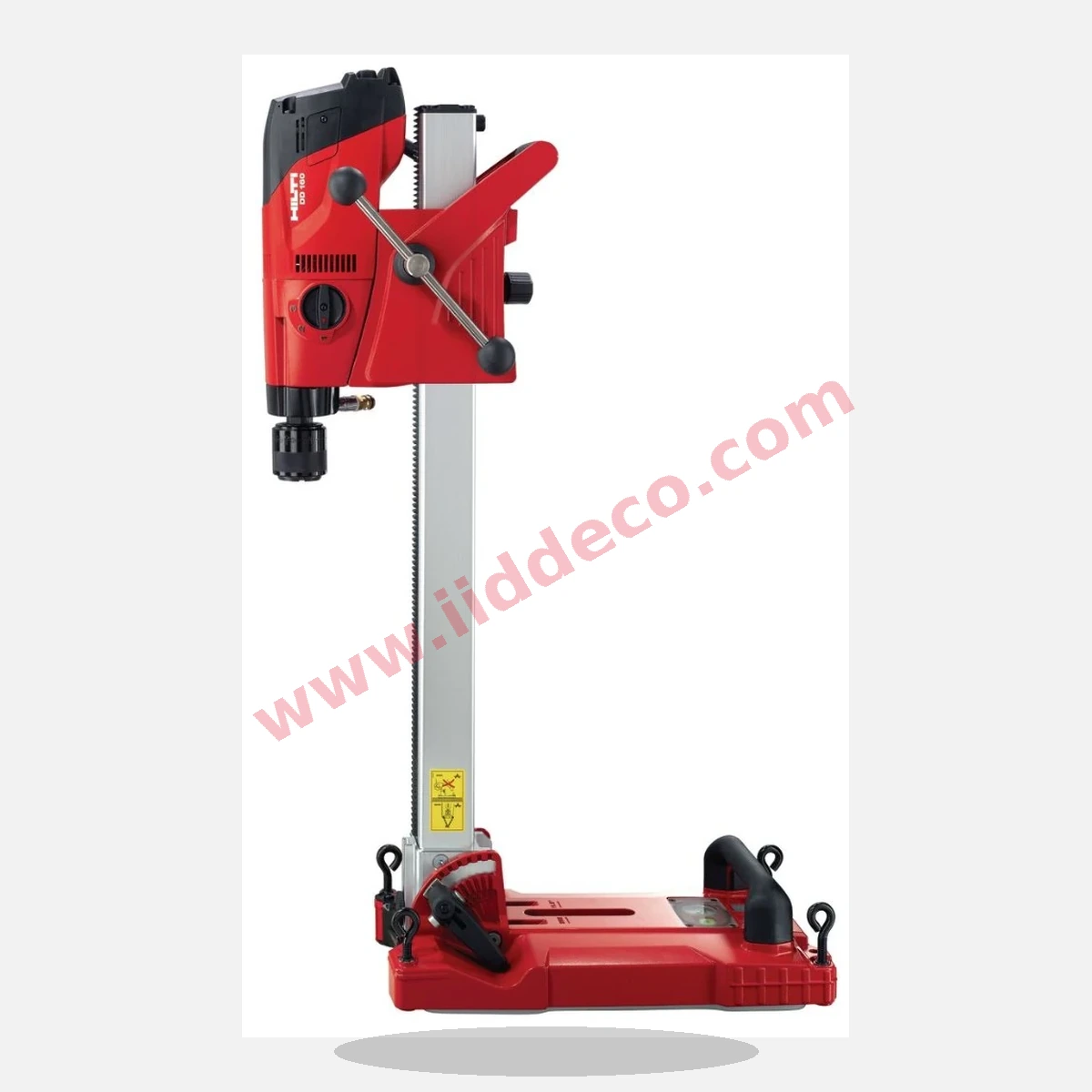

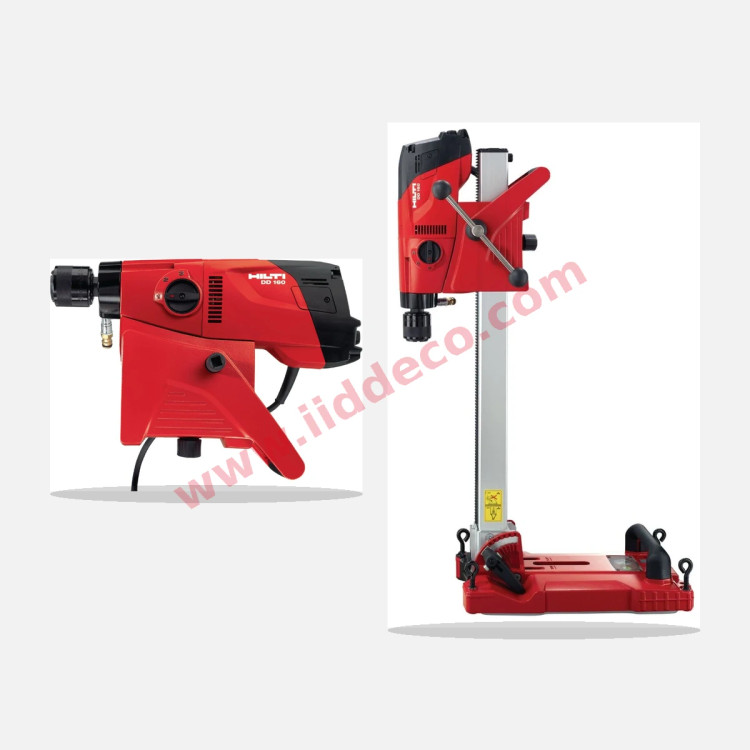

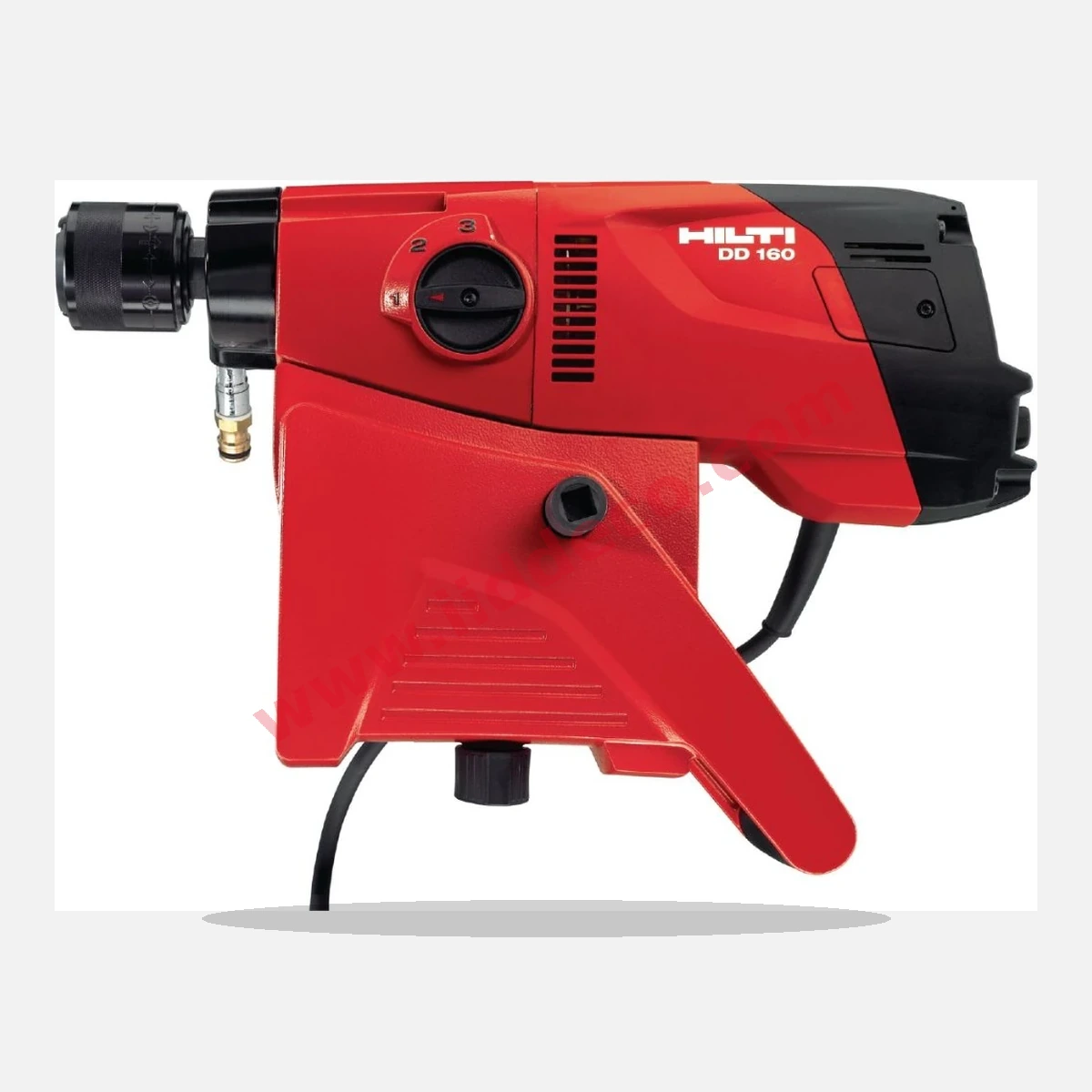

دستگاه کرگیرآلمانی HILTI DD 160 با گارانتی شرکت HILTI

Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 - 7-15/16”) in diameter

• Diameter range:  31/32 - 7-15/16 in
• Drilling stand:  Baseplate dimensions and system weight based on usage of SFL stand
• Base material:  Concrete

TECHNICAL DATA

Diameter range

31/32 - 7-15/16 in

Drilling stand

Baseplate dimensions and system weight based on usage of SFL stand

Base material

Concrete

Operation mode

Rig-based drilling system

Number of gears

3

No load RPM

gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm

Weight according EPTA-Procedure 01/2003 without battery

22.7 lb.

Weight of complete system

36 lb.

Dimensions (LxWxH)

17.7 x 7.7 x 12.4 in

A-weighted emission sound pressure level

93 dB (A) ¹

Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)

4 m/s²

Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A

PS/PL

Corner accessibility

2.1 in
