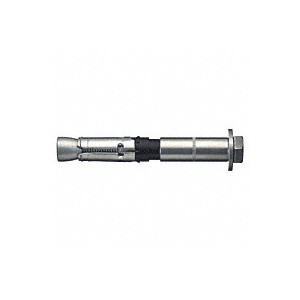

Heavy-duty anchor SLA B with bolt

The secure anchor for heavy loads in concrete

Product overview

The heavy-duty anchor SLA B is a classic sleeve anchor with bolt for high loads in cracked and non cracked concrete. With the ETA-assessment Option1 for cracked concrete, the fire resistance class R120 and the assessment for anchoring subjected to seismic loading C1/C2 class this anchor is a perfect solution for your security.

In addition, it consists of steel quality 8.8. The integral plastic ring prevents twisting of the anchor and allows to overcome gaps between the attached par and the concrete surface. For a comfortable mounting a setting depth marking is on the anchor.

SLA is also available with countersunk head (SLA C) or with hex-head (SLA S).

List of references

Filters

Drill hole diameter [mm]

Drill hole depth [mm]

Eff. Anchorage depth [mm]

Plug length [mm]

Thickness of fixture [mm]

Thread

Reference

d

J

91280SLAB

91290SLAB

912120SLAB

91590SLAB

915100SLAB

915130SLAB

915180SLAB

918110SLAB

918125SLAB

918150SLAB

918200SLAB

924125SLAB

924140SLAB

924165SLAB

924215SLAB

Drill hole diameter [mm]

d

J

12

12

12

15

15

15

15

18

18

18

18

24

24

24

24

Drill hole depth [mm]

d

J

85

85

85

95

95

95

95

115

115

115

115

130

130

130

130

Eff. Anchorage depth [mm]

d

J

59

59

59

67

67

67

67

88

88

88

88

99

99

99

99

Plug length [mm]

d

J

80

90

120

90

100

130

180

110

125

150

200

125

140

165

215

Thickness of fixture [mm]

d

J

10

20

50

10

20

50

100

10

25

50

100

10

25

50

100

Thread

d

J

M8

M8

M8

M10

M10

M10

M10

M12

M12

M12

M12

M16

M16

M16

M16

Head type

d

J

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Bolt and hex-head nut

Packaging units

d

J

30

30

25

20

15

15

10

10

10

5

5

5

5

4

4

Packaging type.

d

J

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box

Box
